BeamDyn simulation error

Wind & Water Computer-Aided Engineering Software Tools
1

Hi all，

I was trying to use the BeamDyn independent drive module to simulate a load on a beam, and then the following problem appeared, and I tried it for a long time but still didn’t solve it, because I am a novice and hope to get some help.

Thanks in advance and best regards,
XinPei

微信图片_20231030165525
微信图片_202310301655251214×741 30.5 KB

微信图片_20231030165625
微信图片_20231030165625796×1030 41.4 KB

微信图片_20231030165636
微信图片_20231030165636942×876 50 KB

微信图片_20231030170035
微信图片_20231030170035814×946 30 KB

2

Dear @XinPei.Zhang,

Just a couple comments:

Best regards,

1 Like
3

hi, Jason

Thanks for the reply.I tried to compile and generate the beamdyn driver from the vs build file based on your feedback, but it was unsuccessful. However, I downloaded the latest compiled driver from Github. However, if I want to modify the beamdyn source code later on, will it affect the node under different loads, and will this driver be unavailable. Because I have just been exposed to this, I don’t know how to debug through ECHo generated files. May I ask if there are any helpful files that can help me understand. The following are the details of my compilation error.

I’m sorry to trouble you with this small matter. Wishing you a happy life.

微信图片_20231030220404
微信图片_20231030220404890×319 8.84 KB

微信图片_20231030220413
微信图片_202310302204131382×750 50 KB

微信图片_20231030220958
微信图片_20231030220958951×565 36.5 KB

4

hi，Jason

After a period of debugging, I finally solved the problem of error reporting. Your comments are very useful. At the same time, I realize that the Echo file represents the parameters successfully entered. Thank you very much. However, I still have a question. If I change the beamdyn source code about the point load situation, is the latest driver I compiled with GitHub not available ? Do I have to recompile ?

Best regards，
XinPei

5

Dear @XinPei.Zhang,

I’m sorry, but I’m not sure I understand your question.

NREL does not provide precompiled executables of standalone module drivers; you must compile these yourself using the provided compile scripts. And if you change the source code, you must also recompile.

Best regards,

6

hi，Jason

Thank you for your reply. What I mean is that I downloaded BeamDyn on GitHub_ Driver_ The x64.exe file, instead of compiling it myself, can be run. If I change the source code of beamdyn.f90, do I have to use my own compiled BeamDyn_ Driver_ X64.exe file? Sorry, I have another question. Is the global frame in the following image located at the center of the wheel hub or at the bottom of the tower? Because we need to rotate around this coordinate system, which helps the document express that it is the bottom of the tower, but the blades generally do not revolve around the center of the hub? I’m glad you could reply to me.

Best regards,

799d4fda026d414a3c1e0f487706636
799d4fda026d414a3c1e0f487706636946×639 127 KB

7

Dear @XinPei.Zhang,

Can you clarify where you downloaded the standalone BeamDyn driver 64-bit executable from?

If you change an .f90 source file, you must recompile before you can use those changes.

BeamDyn is a structural dynamics module for a single beam, so, there is no concept of wind turbine or tower in BeamDyn. When the BeamDyn standalone driver is applied to a blade of a wind turbine, the global reference frame in the image from the BeamDyn documentation that you show can be thought of as located at the hub center.

Best regards,

8

Dear Jason.Jonkman

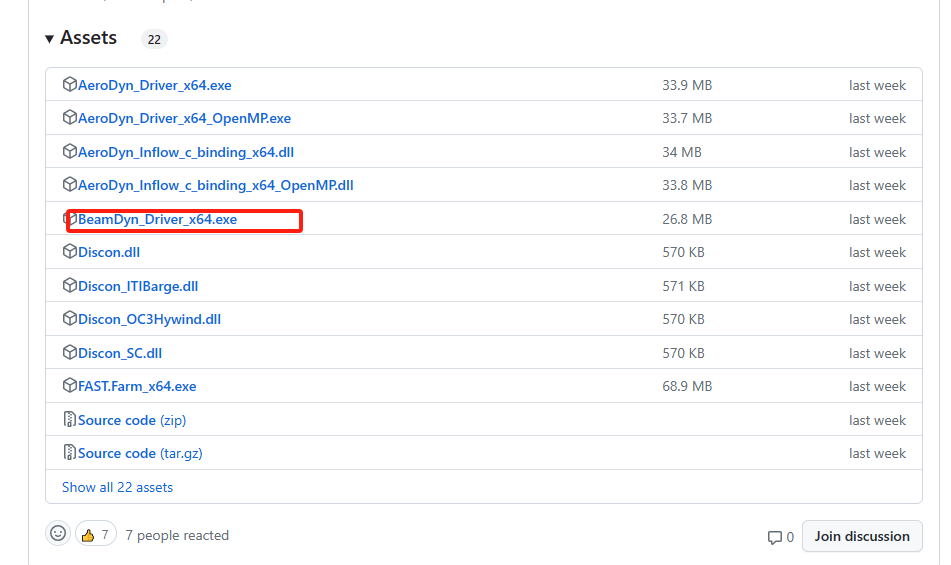

Thanks for reply, I think I have understood the principle of coordinate system, I downloaded the software here, Releases · OpenFAST/openfast · GitHub, because I have no experience in software, so only need to compile.f90 file, do not need to regenerate the standalone BeamDyn driver 64-bit. Thank you very much for taking the time to answer me.

Best regards,
